Power button on the head controls all functions of the head torch:

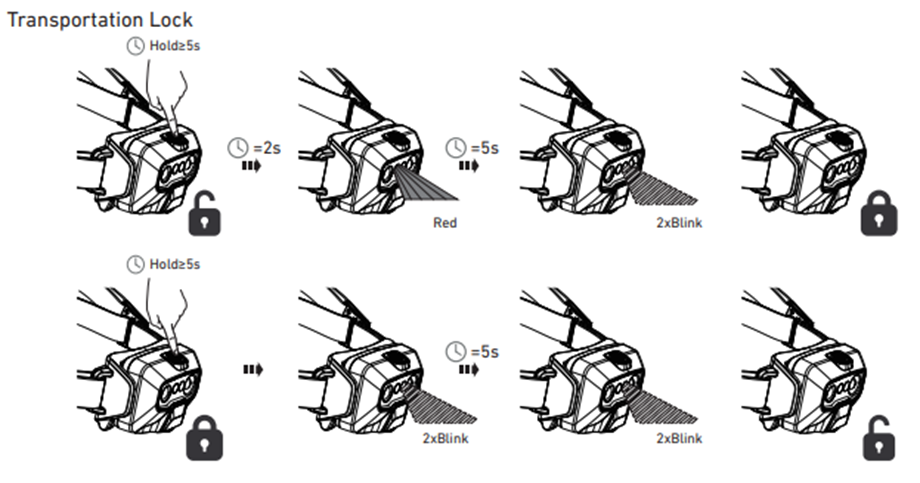

Activate/deactivate “transport lock” to prevent accidental switching on
• Headlamp must be switched off > Press and hold the switch for 5 seconds > Headlamp flashes twice > Release the switch > Transport lock is ON
• Headlamp must be switched off > Press and hold the switch for 5 seconds > Headlamp flashes twice > Release the switch > Transport lock is OFF
Note:
After 2 seconds, the lamp lights up red. Simply continue to hold the switch down, until it flashes twice after approximately 5 seconds.
Low battery warning
• When the battery life is low, the headlamp flashes twice at intervals until it turns off completely.

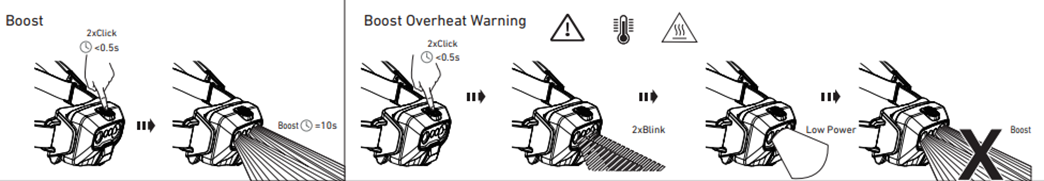

Activating boost
• Regardless of which function the lamp is in: switching twice within less than 0.5 seconds (‘double-click’) activates boost for 10 seconds, i.e. a short-term light output that exceeds 100%.
• If boost is activated too often in quick succession or the lamp is too hot for other reasons, boost will not switch on. The lamp will then flash twice to signal this and switch to ‘low power’ mode.
Light functions HF6R Core / Work
• Low power, mid power, power, red light.
Switching between red light and white light levels:
• Press and hold the switch for approximately 2 seconds until the colour changes.

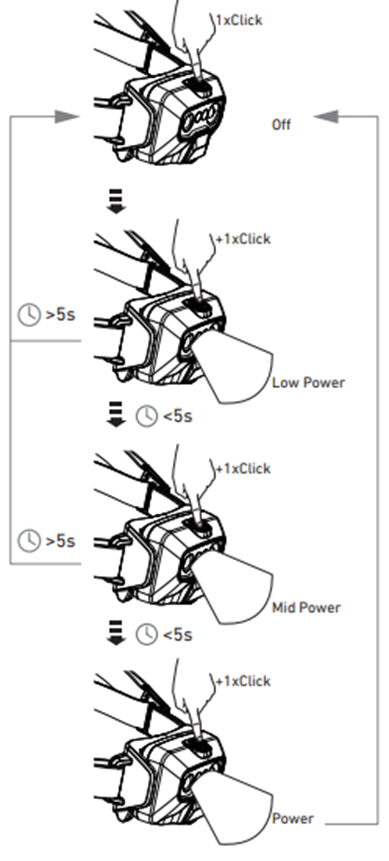

Switching between individual white light levels:
Switch on lamp = low power
• Switch again in less than 5 seconds = medium power
• Switch again in less than 5 seconds = high power
• Switch again in less than 5 seconds = low power again
... etc. ...
• Regardless of light level: switch after more than 5 seconds = lamp off
Light functions HF6R Signature
• Low power, mid power, power, blink, coloured light (red, green, blue).

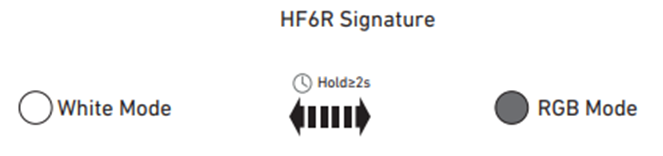

Switching between coloured light (RGB) and white light levels:
• Press and hold the switch for approximately 2 seconds until the colour changes.

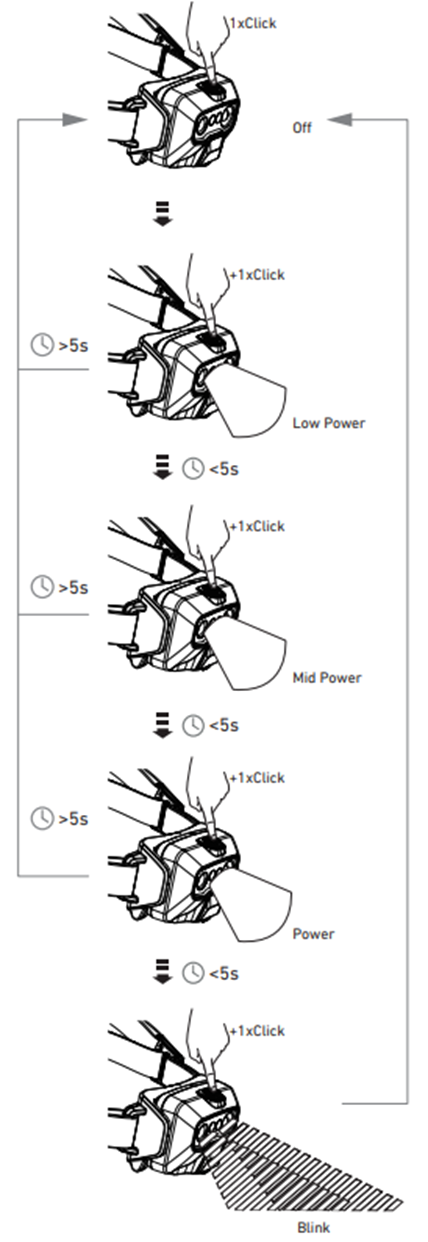

Switch between individual white light levels:
Switch on lamp = low power
• Switch again in less than 5 seconds = medium power
• Switch again in less than 5 seconds = high power
• Switch again in less than 5 seconds = blink
• Switch again in less than 5 seconds = low power again
... etc. ...
• Regardless of the light level: switch after more than 5 seconds = lamp off

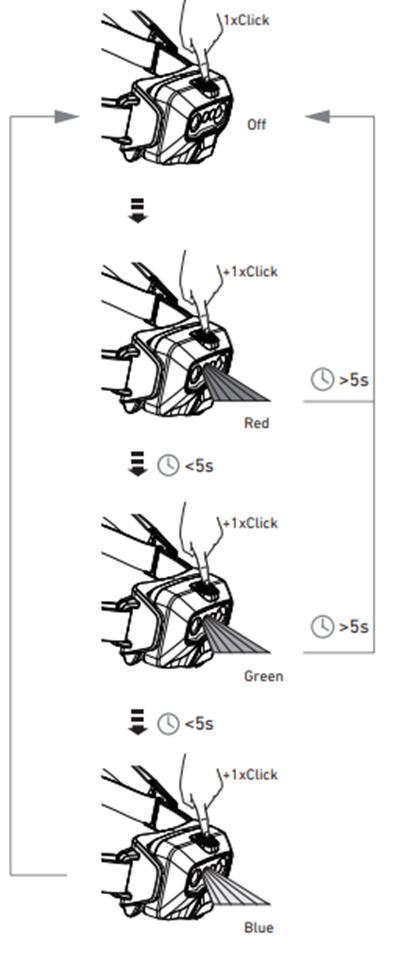

Switching in RGB mode (red, green, blue):
If the light was previously white, press and hold switch again for 2 seconds; the lamp will start with red.
• Switch again in less than 5 seconds = green
• Switch again in less than 5 seconds = blue
• Switch again in less than 5 seconds = red again
... etc. ...
• Regardless of the colour: switch after more than 5 seconds = lamp off
